Hi-Tech Bystronic Flattening / Hemming Tools

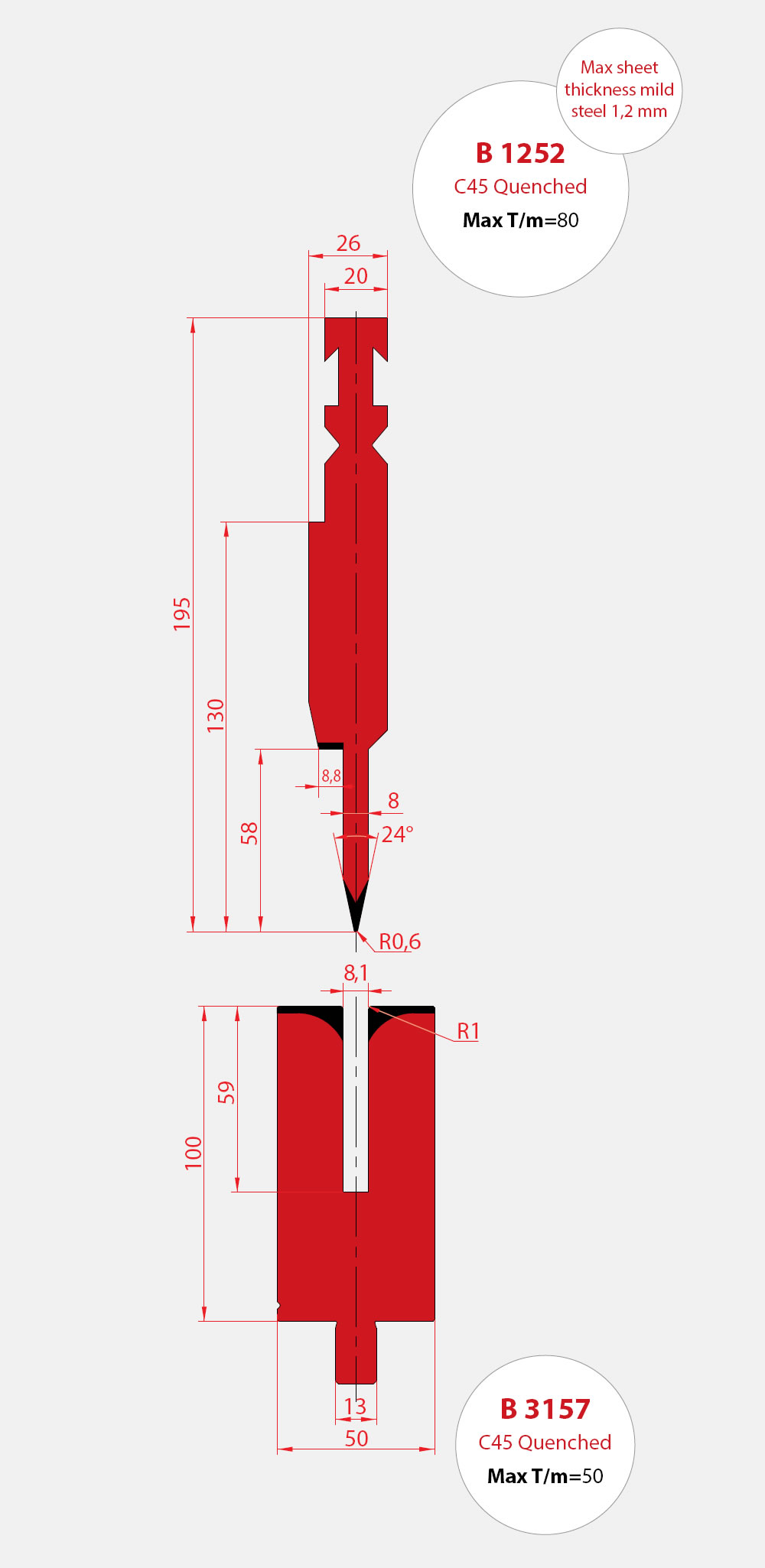

B1252 / B3157

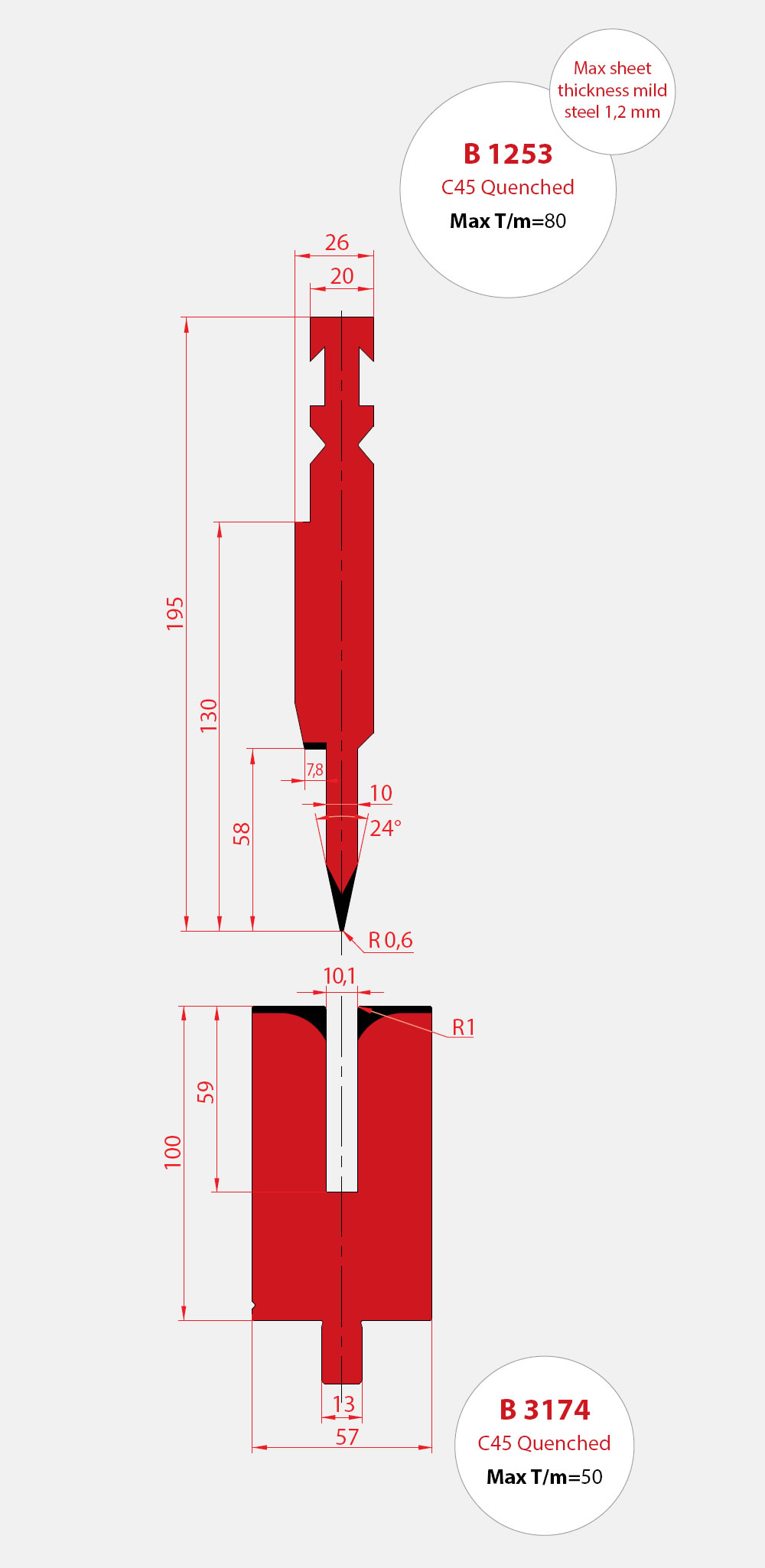

B1253 / B3174

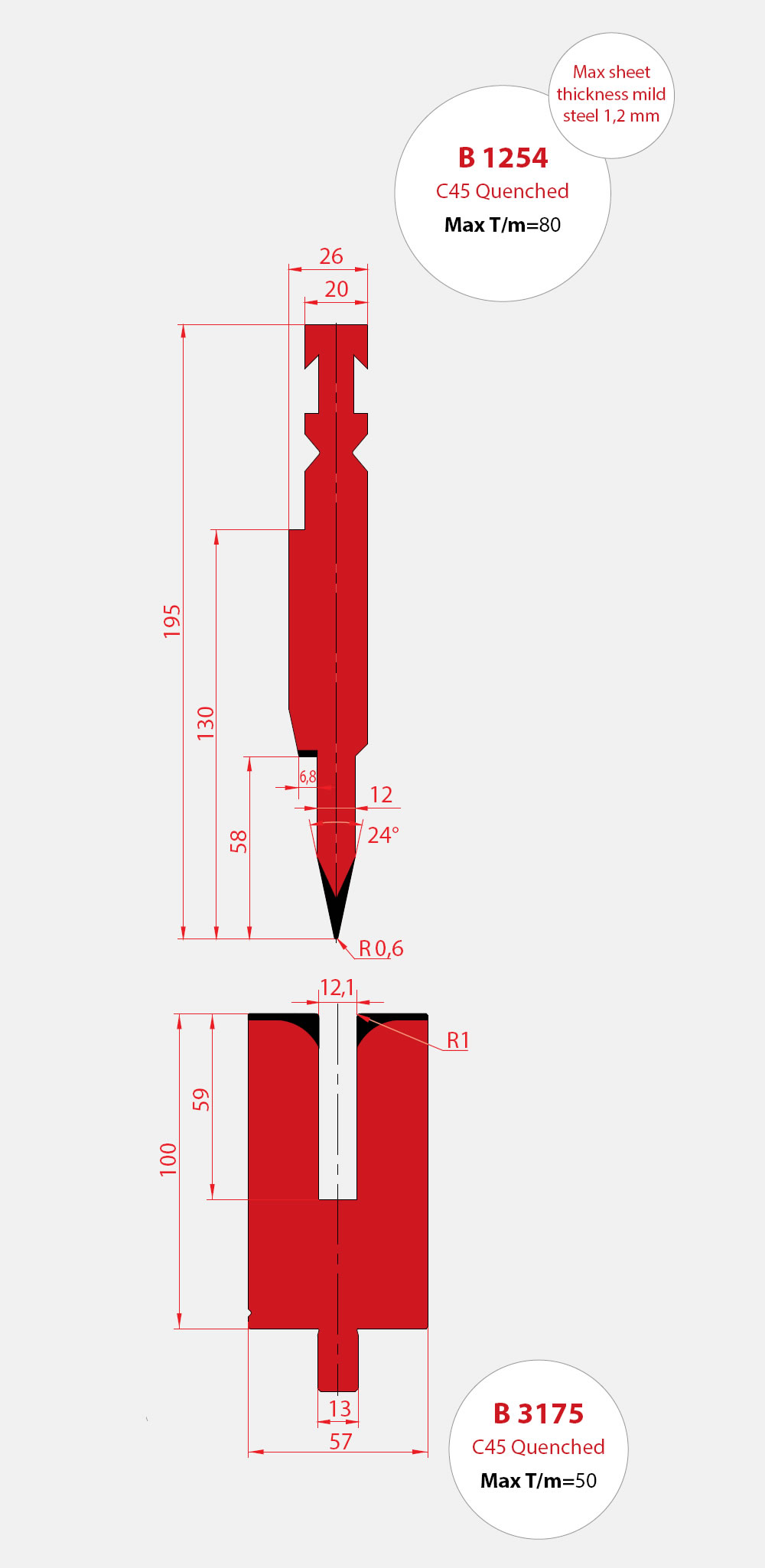

B1254 / B3175

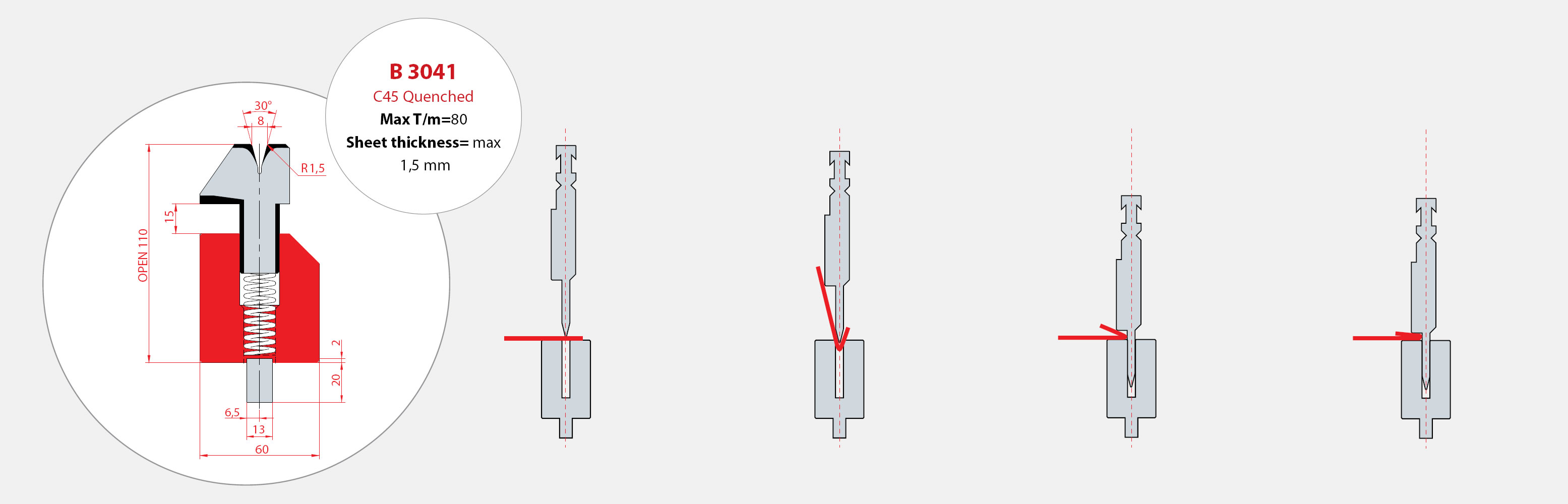

B3041

Bending Charts for Hemming Tools

Acc.R.45 Kg/mmq

S mm

A mm

Ton/M

2xS

Ton/M

0,6

3

9

1,2

23

0,8

3

12

1,6

32

1

3,5

15

2

40

1,25

3,5

17

2,5

50

1,5

4,6

22

3

63

2

5,5

30

4

80

2,5

6,5

55

5

90

3

8

70

6

100

Acc.R.70 Kg/mmq

S mm

A mm

Ton/M

2xS

Ton/M

0,6

3

15

1,2

35

0,8

3

20

1,6

50

1

3,5

25

2

60

1,25

3,5

26

2,5

80

1,5

4,6

38

3

95

2

5,5

50

4

130

Download Bending Chart for Hemming Tools

Ashmores Press Brake Tooling

Hi-Tech tools, press brake tools. Suitable for:

LVD, Trumpf, Edwards Pearson, Bystronic, Wila, Beyeler, Darley, Pullmax, Ursviken, EHT, Weinbrenner.
